Tantalum Capillaries vs. Platinum Capillaries: A Comparison

Tantalum Capillaries vs. Platinum Capillaries: A Comparison

Introduction

Tantalum and platinum capillaries are both high-performance materials used in specialized applications where durability, corrosion resistance, and biocompatibility are essential. While both metals share some similarities, their distinct properties make each suitable for different uses. Here’s a comparison of tantalum and platinum capillaries, highlighting their properties, applications, and the benefits of each.

1. Material Properties

Property Tantalum Platinum
Density 16.6 g/cm³ 21.45 g/cm³
Melting Point 3,017°C 1,768°C
Corrosion

Resistance

 High,

especially

in acidic

environments

 Excellent,

highly

resistant

to most

chemicals
Biocompa

-tibility

 Biocompatible

and

biologically

inert

 Biocompatible

and

often used

in implants
Thermal

Conductivity

 57 W/m·K 72 W/m·K
Electrical

Conductivity

 Moderate Very high
Cost Generally

lower than

platinum

 Greatly

higher

2. Corrosion Resistance

– https://en.wikipedia.org/wiki/Tantalum: Tantalum capillaries are highly resistant to corrosion, particularly against strong acids like hydrochloric acid and sulfuric acid. This makes tantalum an excellent choice in environments involving aggressive chemicals, such as in chemical processing and acid transfer.

– Platinum: Platinum has exceptional resistance to most chemicals, including acids and alkalis. It also resists oxidation at high temperatures, which is beneficial in extreme environments. However, platinum’s resistance to highly reactive fluorinated compounds is limited, where tantalum might perform better.

3. Biocompatibility

– Tantalum: Tantalum is biocompatible and inert, making it suitable for medical implants and surgical instruments. Its ability to integrate well with human tissue without causing adverse reactions has made it a common choice in medical applications.

– Platinum: Platinum is also biocompatible and highly resistant to bodily fluids, which makes it a popular choice in medical and dental applications, including pacemaker leads and stents. Its inert nature minimizes risks of immune reactions.

4. Temperature Stability

– Tantalum: With a melting point of 3,017°C, tantalum capillaries can withstand extremely high temperatures, making them ideal for use in environments that demand thermal stability, such as aerospace components and high-temperature reactors.

– Platinum: While platinum’s melting point of 1,768°C is lower than that of tantalum, it is still suitable for high-temperature applications, particularly where resistance to oxidation is required. Platinum’s stability at high temperatures makes it suitable for use in laboratory and electronic applications.

5. Electrical and Thermal Conductivity

– Tantalum: Tantalum has moderate electrical and thermal conductivity, which makes it suitable for some electronics applications, but it is not as conductive as platinum. This moderate conductivity can limit its use in applications requiring highly efficient heat dissipation or electrical transmission.

– Platinum: Platinum has high electrical and thermal conductivity, making platinum capillaries valuable in high-precision electronic components and thermocouples. Its excellent conductivity also supports its use in laboratory and industrial processes where accurate temperature measurements and stable electrical contacts are needed.

6. Applications

  • Tantalum Capillaries:

– Chemical Processing: Used in environments with strong acids and corrosive fluids.

– Medical Implants: Popular for implants and surgical instruments due to biocompatibility.

– High-Temperature Applications: Suitable for aerospace, fuel handling, and vacuum systems.

  • Platinum Capillaries:

– Medical Devices: Used in pacemakers, stents, and dental implants due to biocompatibility and inertness.

– Laboratory Applications: Platinum capillaries are frequently used in laboratory equipment, thermocouples, and precision temperature sensors because of their thermal and electrical conductivity.

– Electronics: Applied in high-end electronics where conductivity and stability are needed, such as in specialized circuit components and electrodes.

7. Cost Considerations

– Tantalum: Tantalum is typically more affordable than platinum, making it a cost-effective option for applications where high-temperature and corrosion resistance are needed without the premium cost of platinum.

– Platinum: Platinum is considerably more expensive due to its rarity and high demand in specialized applications. However, its superior electrical and thermal conductivity, combined with its excellent corrosion resistance, can justify the higher cost in applications where performance is prioritized over cost.

Choosing Between Tantalum and Platinum Capillaries

When selecting between tantalum and platinum capillaries, the choice largely depends on the specific requirements of the application:

  • Choose Tantalum Capillaries if:

– High melting point and thermal stability are critical.

– The environment involves exposure to highly corrosive acids.

– Cost is a major factor, and a more affordable option is preferred.

– The application requires biocompatibility without high electrical conductivity.

  • Choose Platinum Capillaries if:

– High electrical and thermal conductivity are required, such as in electronics and precision laboratory equipment.

– Biocompatibility is essential, especially in sensitive medical devices like pacemakers.

– The application requires excellent corrosion resistance in both acidic and alkali environments, but without cost constraints.

Conclusion

Tantalum and platinum capillaries each offer unique advantages, making them suitable for different applications. Tantalum capillaries excel in high-temperature and highly corrosive environments, providing durability at a lower cost. Platinum capillaries, on the other hand, bring exceptional conductivity and stability, making them ideal for high-precision medical and electronic applications where performance is key. For more information, please check Advanced Refractory Metals (ARM).

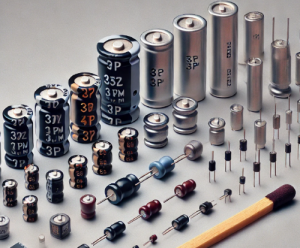

Tantalum Capacitor vs. Electrolytic Capacitor

Tantalum Capacitor vs. Electrolytic Capacitor

Introduction

Capacitors are vital components in electronics, responsible for energy storage, filtering, and signal stabilization. Among the many capacitor types, tantalum capacitors and electrolytic capacitors are widely used due to their specific properties. In this article, we will compare tantalum capacitors with electrolytic capacitors, explaining their differences, benefits, and performance data to help you decide which is better for your needs.

1. What is a Tantalum Capacitor?

A tantalum capacitor is a type of electrolytic capacitor that uses tantalum metal as the anode, with tantalum pentoxide as the dielectric. Tantalum capacitors are known for their high capacitance per volume, which makes them compact while providing excellent performance. They offer high stability, low leakage current, and a long operational life. Tantalum capacitors are generally used in applications requiring long-term reliability, such as medical devices, military electronics, and aerospace systems.

2. What is an Electrolytic Capacitor?

An electrolytic capacitor typically uses aluminum as the anode with an oxide layer as the dielectric and a liquid or solid electrolyte as the cathode. Electrolytic capacitors are favored for their ability to offer high capacitance values at low cost. These capacitors are often used in applications that require bulk energy storage, such as power supplies and amplifiers.



Here is a comparison table of their key features:

Feature Tantalum Capacitor Electrolytic Capacitor
Anode Material Tantalum Aluminum
Dielectric Tantalum Pentoxide Oxide layer

on Aluminum
Capacitance Range 0.1 µF to 1000 µF 1 µF to 100,000 µF
Voltage Ratings 1.8V to 50V 6V to 500V
Temperature Range -55°C to +125°C -40°C to +85°C

(up to 105°C

in some models)
Equivalent Series

Resistance (ESR)

 Low ESR Higher ESR
Size Compact, high capacitance

per volume

 Larger, bulkier

3. Tantalum Capacitor vs. Electrolytic Capacitor

–Construction and Materials

Tantalum capacitors use a solid tantalum core. The tantalum pentoxide dielectric is exceptionally thin, allowing for high capacitance in small sizes. Due to the stable dielectric material, tantalum capacitors are highly reliable.

Electrolytic capacitors typically use an aluminum core with a liquid or solid electrolyte, which restores the dielectric during operation. The construction leads to a larger physical size but supports higher capacitance and voltage ranges.

Further reading: What are the Differences Between Electrolytic, Tantalum, And Ceramic Capacitors?

–Performance Data and Capacitance Comparison

Tantalum capacitors offer capacitance values that can reach up to 1000 µF in compact designs, making them ideal for use in portable electronics and precision circuits. They have low equivalent series resistance (ESR), typically ranging from 0.1 to 1 ohm. This low ESR ensures minimal power loss, which makes tantalum capacitors highly effective in high-frequency filtering applications.

Electrolytic capacitors, particularly aluminum types, are known for their higher capacitance values, often exceeding 10,000 µF. For instance, aluminum electrolytic capacitors with capacitance values around 4700 µF are commonly used in power supply circuits. However, their ESR can range from 0.5 ohms to over 5 ohms, depending on the specific model. This higher ESR makes electrolytic capacitors less suitable for applications requiring efficient high-frequency filtering.

–Size and Form Factor

Tantalum capacitors are compact, with sizes as small as 0.6 mm x 0.3 mm in surface-mount packages. This makes them ideal for space-constrained applications such as smartphones and medical implants.

Electrolytic capacitors are typically larger due to their construction. For example, a 4700 µF aluminum electrolytic capacitor may be several centimeters in diameter, making them less suitable for small devices.

–Reliability and Lifespan

Tantalum capacitors are known for their high reliability, especially in low-voltage applications. They have lower leakage currents and longer operational lives, typically lasting over 10,000 hours in harsh environments.

The lifespan of electrolytic capacitors is shorter, particularly in high-temperature environments where the electrolyte can evaporate. A typical aluminum electrolytic capacitor may last around 2,000 to 5,000 hours at 85°C, although some models rated for 105°C can last longer.

–Voltage and Temperature Ratings

Tantalum capacitors are typically rated for lower voltages, up to 50V. However, they can withstand higher temperatures (up to 125°C) and maintain their stability over a wide range of temperatures.

Electrolytic capacitors can handle much higher voltages, with ratings up to 500V or more, which makes them suitable for power circuits. However, their performance may degrade in extreme temperatures.

— Cost Considerations

Tantalum is a rare metal, and its capacitors tend to be more expensive. A typical surface-mount tantalum capacitor (10 µF, 25V) may cost several times more than an equivalent electrolytic capacitor.

Aluminum electrolytic capacitors are significantly cheaper and more accessible. For example, a 4700 µF, 25V aluminum capacitor can cost less than a dollar, making them an affordable choice for high-volume applications.

–Use Cases

Tantalum capacitors are best suited for high-reliability applications where space is limited, such as in medical implants, smartphones, and aerospace systems. Their low equivalent series resistance (ESR) and long operational life make them particularly well-suited for use in high-frequency circuits that require stable and consistent performance.

Electrolytic capacitors are commonly used in applications that require high capacitance and higher voltage ratings, such as in power supplies, audio amplifiers, and motor drives. These capacitors are ideal for circuits that prioritize energy storage and bulk capacitance over compactness and precision.

Conclusion

In summary, tantalum capacitors excel in compactness, stability, and long-term reliability, making them the preferred choice for high-precision and space-constrained applications. Electrolytic capacitors, on the other hand, offer higher capacitance values and are more cost-effective for high-voltage and power-intensive applications. Your choice between the two should be based on the specific needs of your circuit, including size, voltage, capacitance, and cost. For more metals and alloys, please visit Advanced Refractory Metals (ARM).

How to Choose Tantalum Pipes for Corrosive Environments

How to Choose Tantalum Pipes for Corrosive Environments

Introduction

When selecting pipes for industrial systems exposed to highly corrosive substances and extreme temperatures, tantalum pipes are often the top choice due to their remarkable corrosion resistance and longevity. However, choosing the right tantalum pipes requires careful consideration of several factors to ensure optimal performance and cost-effectiveness.

1. Assess the Type of Corrosive Substances

The first step is to evaluate the specific chemicals the pipes will be exposed to. Tantalum is highly resistant to most acids, including sulfuric, hydrochloric, and nitric acids, making it ideal for handling aggressive chemicals. However, be mindful that it is vulnerable to hydrofluoric acid and concentrated alkali solutions. Ensure that the properties of tantalum align with the chemical environment in which it will be used.

2. Consider Temperature Range

Tantalum pipes can withstand high temperatures without losing their mechanical properties. They are commonly used in environments where temperatures reach up to 500°C (932°F) or more. It’s important to confirm that your application operates within this temperature range to avoid performance degradation.

3. Evaluate Pressure Requirements

Tantalum pipes are available in both welded and seamless forms, and the choice between the two depends largely on the pressure levels within the system. For high-pressure applications, seamless tantalum pipes are preferred due to their superior strength and uniform structure. Welded pipes are more cost-effective but may not be suitable for extreme pressure conditions.

4. Balance Cost vs. Long-Term Benefits

Tantalum pipes are more expensive upfront compared to other materials like stainless steel or titanium. However, their ability to resist corrosion for extended periods reduces the need for frequent replacements and maintenance, leading to significant long-term savings. Evaluate the total cost of ownership, including maintenance and downtime, when comparing materials.

5. Check Compatibility with Other Materials

If your piping system combines different materials, it’s crucial to ensure that tantalum pipes are compatible with the other components. Incompatible materials can lead to galvanic corrosion at connection points. Tantalum is often combined with other metals or glass-lined systems, but careful attention must be paid to material compatibility.

6. Determine Custom Fabrication Needs

Tantalum pipes can be custom-made to fit specific dimensions, wall thicknesses, and shapes. If your application has unique design constraints or requires tailored solutions, custom fabrication is a key consideration. Additionally, options such as coatings or hybrid designs can further enhance performance in challenging environments.

7. Plan for Maintenance and Installation

While tantalum pipes require minimal maintenance, it’s essential to ensure that installation and repairs are performed by experienced professionals familiar with the material. Incorrect handling during installation can lead to damage or reduced lifespan. Plan for routine inspections and ensure your team is trained in handling tantalum components.

8. Verify Compliance with Industry Standards

Ensure that the tantalum pipes you select meet industry standards such as those from ASTM (American Society for Testing and Materials) or ASME (American Society of Mechanical Engineers). Compliance with these standards ensures the material’s reliability and suitability for the intended environment.



Key Consideration Details
Corrosive Substances Resistant to most acids

(e.g., sulfuric, hydrochloric, nitric);

vulnerable to hydrofluoric acid.
Temperature Range Ideal for high temperatures,

typically up to 500°C (932°F)

without performance degradation.
Pressure Requirements Seamless pipes for high-pressure applications;

welded pipes for moderate pressure systems.
Cost vs. Long-Term Benefits Higher upfront cost,

but significant long-term savings

due to durability and low maintenance.
Material Compatibility Ensure compatibility with other system materials

to avoid galvanic corrosion at connection points.
Custom Fabrication Available in custom dimensions,

wall thicknesses,

and shapes for unique applications.
Installation and Maintenance Requires specialized handling

for installation and repairs;

minimal routine maintenance needed.
Compliance with Standards Ensure pipes meet ASTM, ASME,

or other industry-specific standards

for reliability and safety.

Conclusion

Choosing tantalum pipes for corrosive environments is a strategic decision. By considering the type of chemicals, temperature and pressure requirements, long-term cost benefits, and installation needs, you can make an informed choice.

Advanced Refractory Metals (ARM) offers tantalum pipes in both seamless and welded varieties. We also provide custom-shaped and machined tantalum parts designed to meet your specific requirements. For further details, please visit our website.

Traditional vs Special Refractory Materials

Traditional vs Special Refractory Materials

Introduction

Refractory materials are essential components in industries that operate at high temperatures, such as metallurgy, glassmaking, cement production, and petrochemicals. These materials are designed to withstand extreme heat, mechanical stress, and chemical corrosion.

Two broad categories of refractory materials are traditional refractory materials and special refractory materials. We are going to compare these two types, highlighting their characteristics, applications, and advantages.

Traditional Refractory Materials

Traditional refractory materials are typically derived from naturally occurring minerals, primarily alumina and silica. They have been used for centuries due to their abundance, affordability, and relatively simple manufacturing processes. The most common traditional refractory materials include:

Related reading: 13 Types of Refractory Materials and Their Applications

1. Clay Bricks

Composed of alumina and silica, clay bricks are one of the oldest refractory materials. They typically contain 30% to 48% alumina and are widely used in blast furnaces, glass kilns, and rotary kilns.

Applications: Clay bricks are often used in the construction of blast furnace linings, cement kilns, and glass furnaces due to their durability and cost-effectiveness.

2. Silica Bricks

Silica bricks contain over 93% silica (SiO₂) and are known for their excellent high-temperature stability. They are primarily used in structures that experience high heat, such as coke ovens and glass furnaces.

Applications: Silica bricks are often used in the walls and vaults of coke ovens and high-temperature kilns due to their resistance to thermal shock.

3. High Alumina Bricks

With more than 48% alumina, high alumina bricks offer superior strength and resistance to chemical corrosion compared to clay bricks. These bricks are widely used in industries that involve molten metals and slags.

Applications: High alumina bricks are commonly found in steel furnaces, electric arc furnace roofs, and other high-temperature environments in the metallurgical industry.

Special Refractory Materials

Special refractory materials are advanced materials designed to meet the unique demands of modern high-temperature industries. They are made from more complex compounds, including high-melting-point oxides and non-oxides, and often exhibit superior performance characteristics such as higher resistance to heat, chemical attack, and mechanical wear. Some of the key types include:

1. Corundum Bricks

Corundum bricks contain over 90% alumina and are primarily composed of corundum (α-Al₂O₃), making them one of the most heat-resistant refractory materials. They are commonly used in extremely high-temperature environments.

Applications: Corundum bricks are used in blast furnaces, hot blast stoves, and refining furnaces, where high thermal resistance and strength are essential.

2. Magnesium Bricks

Made from sintered or fused magnesia, magnesium bricks are an alkaline refractory known for their high melting point and resistance to chemical corrosion, especially from basic slags in steelmaking.

Applications: These bricks are ideal for open-hearth furnaces, electric arc furnaces, and steel ladles.

3. Zirconia Refractories

Zirconia (ZrO₂) refractories are known for their exceptional resistance to heat, chemical corrosion, and thermal shock. They are often used in applications involving molten glass or high-purity metals.

Applications: Zirconia refractories are found in the glass industry, where they help prevent contamination and withstand extreme temperatures in glass furnaces.

4. Silicon Carbide (SiC) Refractories

Silicon carbide refractories are known for their high thermal conductivity, hardness, and resistance to thermal shock and chemical attack. They are ideal for industries that require materials to maintain strength and stability at very high temperatures.

Applications: Silicon carbide refractories are used in furnaces, kilns, and other high-temperature applications that require exceptional wear resistance.

Key Comparisons

1. Thermal Resistance

Traditional refractories like clay and silica bricks perform well in many high-temperature applications but are limited in environments that exceed 1600°C. Special refractories such as corundum, zirconia, and silicon carbide can withstand much higher temperatures, often exceeding 1800°C, making them ideal for more extreme industrial processes.

2. Mechanical Strength and Durability

Special refractory materials generally offer higher mechanical strength and durability under harsh conditions. For example, corundum bricks are more resistant to wear and mechanical stress compared to traditional clay or silica bricks, making them suitable for environments where high mechanical load and abrasion are common.

3. Chemical Resistance

While traditional refractories perform adequately in many chemical environments, special refractories like magnesium and silicon carbide are specifically designed to resist corrosive environments. Magnesium bricks, for instance, are highly resistant to basic slags, while silicon carbide refractories resist both acidic and basic corrosive substances.

4. Thermal Shock Resistance

Special refractories generally have better thermal shock resistance than traditional materials. Silicon carbide, for example, has high thermal conductivity, which helps distribute heat more evenly and prevent cracking under rapid temperature changes, a common issue with traditional clay bricks.

5. Cost and Availability

Traditional refractory materials like clay and silica are more abundant and cost-effective, making them suitable for applications where extreme thermal resistance or chemical durability is not critical. Special refractory materials, while offering superior performance, are often more expensive and may require more complex production processes.

Conclusion

The choice between traditional and special refractory materials depends on the specific requirements of the application. Both categories continue to play a vital role in high-temperature applications across various industries.

Traditional refractory materials such as clay, silica, and high alumina bricks are cost-effective and perform well in many high-temperature environments. However, special refractory materials like corundum, zirconia, and silicon carbide offer superior thermal resistance, chemical durability, and mechanical strength, making them ideal for more demanding industrial processes.
